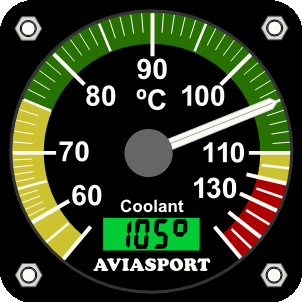

Español   COOLANT TEMPERATURE FOR ROTAX 912/914 Diameter: 57mm Units : ºC With LCD   The IM-1511 instruments have been designed especially to measure the coolant temperature in Rotax® engines 912/914 (Series). The IM-1511 is available in 57 mm diameter.  The instruments have been designed to work with both 12V and 24V systems. The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous coolant temperature monitorization. The LCD show the temperature. The LCD is readable at direct sunlight.   Technical data Case Plastic Weight 120g Suitable for Rotax 912/914 Power Supply 10..30VDC Power Current  0.1 Amp. Max. Scale 50..150 ºC Subdivision scale 1ºC Max. Deviation 1% Dimensions See sketch Calibration Calibrated by the manufacturer prior to shipment. Wire Connections Dimensions
