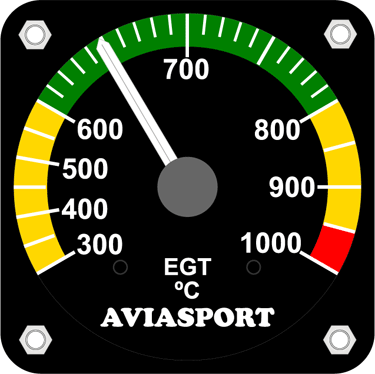

IM-775

Español

SINGLE EGT FOR ROTAX 914
57mm Diameter - ºC

  • The IM-775 instruments have been designed especially to measure the EGT in Rotax® engines 914.


  • The IM-775 is available in 57 mm diameter

  • With  a optional switch, you can measure the Temperature of two EGT.


  • The instruments use a pointer thats turns 240º, witch gives them great resolution.


  • Their display areas are divided  into red, green and yellow zones in line with the ROTAX limits.


  • Thanks to embedded operational amplifiers, this
     instrument has a high accuracy, but needs a power
     supply of 12V or 24V.


Technical data
Case Plastic
Weight 200g
Suitable for Rotax 914 With Type "K" sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 300..1000 ºC
Subdivision scale 10ºC
Max. Deviation 1%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections

Dimensions


IM-775
Referencia:IM-775
Normalmente en Stock
Consulte Precio
Senders
IM-927
Probe type "K". Has a M8 thread and can be installed directly on the M8 nuts that come from the factory on 914 engines and some 912. In the exhaust without nuts, your need weld 4xM8 nuts. Stainless steel protection. Wire length 2 meters.
Price : 36.46€ + VAT
IM-928
Probe type "K". Has a M8 thread and can be installed directly on the M8 nuts that come from the factory on 914 engines and some 912. In the exhaust without nuts, your need weld 4xM8 nuts. Stainless steel protection. Wire length 3 meters.
Price : 40.70€ + VAT
IM-929
Probe type "K" with Clamp. Designed for 447/503/582 Rotax engines. No need weld nut, simply drill and tighten the clamp. Stainless steel protection. Wire length 2 meters
Price : 35.19€ + VAT
