IM-769

Español

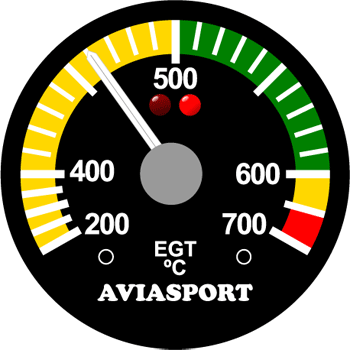

DUAL EGT FOR ROTAX 582
52mm Diameter - ºC

  • The IM-769 instruments have been designed especially to measure the EGT in Rotax® engines 503.


  • The IM-769 is available in 52 mm diameter

  • Can be connected two probes. First shows the temperature of one. After of 3 seconds automatically show the other probe temperature, The two LEDs are used to show that probe is reading.


  • The instruments use a pointer thats turns 240º, witch gives them great resolution.


  • Their display areas are divided  into red, green and yellow zones in line with the ROTAX limits.


  • Thanks to embedded operational amplifiers, this
     instrument has a high accuracy, but needs a power
     supply of 12V or 24V.


Technical data
Case Plastic
Weight 200g
Suitable for Rotax 582 With Type "K" sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 200..700 ºC
Subdivision scale 10ºC
Max. Deviation 1%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections

Dimensions


IM-769
Part Number:IM-769
Price = 78.00€ + VAT
We sell instruments in the whole
We sell instruments in the whole world.
To calculate the shipping expenses and VAT,
please send an email indicating your country at
roberto@aviasport.com
Soon we will answer the total quantity.
