IM-571

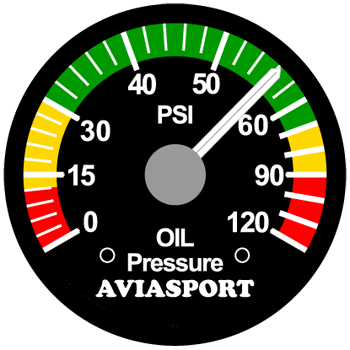

OIL PRESSURE FOR ROTAX 912/914 WITH VDO SENDER
Diameter: 52mm
Units: PSI

  • The IM-571 instruments have been designed especially to measure the Oil pressure in Rotax® engines 912/914 (Series).


  • The IM-571 is available in 52 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous Oil Pressure monitorization.


Technical data
Case Plastic
Weight 200g
Suitable for Rotax 912/914 with VDO Sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..120 PSI
Subdivision scale 2 PSI
Max. Deviation 2%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections

Dimensions

Datasheet





IM-571
Part Number:IM-571
Price = 70.00€ + VAT
